Tool Setup // Storage Architecture

Build a Reachable Tool Kit

Automotive mechanics buy 300-piece socket sets that waste half their volume on fractional inch sizes and deep impact sockets too thick-walled to fit inside a motorcycle cylinder head recess. A motorcycle-specific tool chest prioritizes thin-wall 3/8-inch and 1/4-inch drive sockets, hex/Torx bit sockets, and immediate visual accountability so no tool is ever left inside an airbox.

Core Metric Hex 4, 5, 6, 8, 10 mm
Axle Nut Range 17 – 36 mm (6-Pt)
Drawer Slide Rating 45 kg Ball-Bearing
Torque Standard ISO 6789 (±4%)

Five-Drawer Rolling Cabinet Hierarchy

Organize drawers by task frequency rather than manufacturer kit boxes. Two-tone closed-cell polyethylene foam or magnetic socket rails let you spot a missing 10 mm socket in one glance before starting the engine.

Drawer 01 // Top
Sockets, Ratchets & Extensions: 1/4" drive (4–14 mm), 3/8" drive (8–22 mm six-point flank-drive), wobble extensions, universal joints, and stepped front axle hex spindle adapter (17/19/22/24 mm).
90% of Jobs
Drawer 02 // Upper
Hex, Torx & JIS Drivers: T-handle hex keys (4, 5, 6 mm for rapid fairing removal), #1/#2/#3 JIS cross-head screwdrivers, T20–T55 Torx bit sockets for European chassis bolts, and impact driver for seized rotor screws.
Body & Controls
Drawer 03 // Mid
Combination Spanners & Pliers: Slim-profile metric combination wrenches (8–24 mm), long-nose pliers, flush side cutters for cable ties, safety-wire twist pliers, and internal/external circlip pliers.
Leverage & Grip
Drawer 04 // Lower
Precision Measurement & Torque: Calibrated 1/4" and 3/8" micrometer torque wrenches in cases, angled feeler gauges (0.04–0.35 mm for valve clearances), digital vernier calipers, and multimeter.
Inspection
Drawer 05 // Deep
Heavy Drive & Model-Specific Service: 1/2" breaker bar (600 mm), large axle sockets (27, 30, 32, 36 mm), chain breaker/riveting tool kit, vacuum brake bleeder, and C-spanners for shock preload rings.
Chassis & Drive
Fastener Integrity // Avoiding Expensive Mistakes

Why Six-Point Sockets and JIS Drivers Save Aluminum Threads

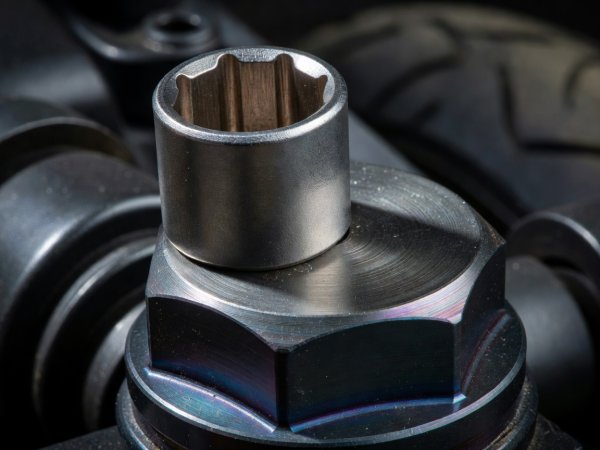

Close-up of a six-point flank-drive socket engaging the flats of an anodized aluminum motorcycle axle nut

Six-Point vs. Twelve-Point Contact

Twelve-point sockets grip only the fragile corners of a bolt head. On low-profile aluminum fork cap nuts or corroded exhaust header studs, a twelve-point socket rounds the hex instantly. Reserve twelve-point sockets solely for bi-hex brake caliper bridge bolts that explicitly require them.

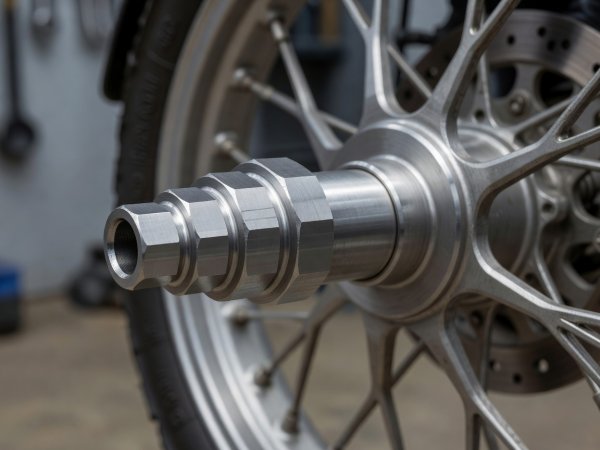

Machined chromoly stepped hex spindle tool inserted into a hollow motorcycle front wheel axle

Hollow Front Axle Spindle Adapters

Most modern sport, naked, and adventure bikes use hollow front axles with internal 17 mm, 19 mm, 22 mm, or 24 mm female hex broaches. A dedicated chromoly 4-in-1 stepped spindle bit pairs directly with your 3/8" or 1/2" torque wrench without bulky L-keys.
